Horizontal Cutting Machine Automatic

Horizontal Cutting Machine Automatic
Horizontal Cutting Machine Automatic
Product Code : BE-403
Brand Name : Best Engineers
Product Description

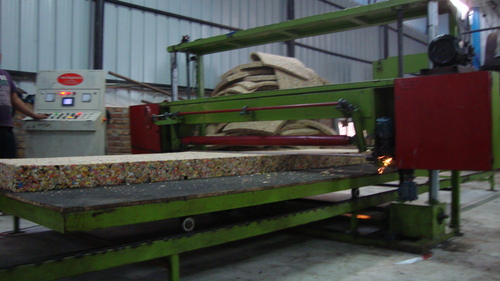

We are a renowned organization of the industry, indulged in manufacturing and supplying precision engineered Horizontal Cutting Machine Automatic. These machines can easily convert foam blocks into sheets that ranges from 2.5mm to 200mm. Our offered machines are highly appreciated for their rigid construction, high strength, hassle-free functioning, easy installation and simpler operations. Equipped with an endless band blade that runs over four dynamically balanced pulleys, Horizontal Cutting Machine Automatic provides smooth and fine edged cutting.

Other details:

The machine is PLC controlled fully automatic a push button is pressed for it operation. The table moves to and fro on rails for cutting blocks. Cutting portion will shifted before the table is in home position.

Automatic

  • The machine is welded MS steel construction.
  • The table is designed MS steel pipe on slide outer track covered with hard croom MS steel.
  • Table top floor is made of wooden board coated amri cloth.
  • Slide guid moves screw system.
  • Blade guid is pretensioned and coated.
  • Thickness is set with digital display in the range of 0 to 999 mm in steps of 0.1mm
  • Band blade 30 mm runs outer dynamically balanced pullys. During cutting operation.
  • Blade are sharpen by automatic motorized grinder.
  • Table capacity of the machine 4 block in size 3ftx6ftx4ft. Larger table than this size depend on the customers desire.
  • Power construction 15HP.
  • Space for machine 10ft to 20ft.
